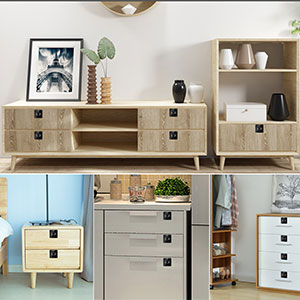

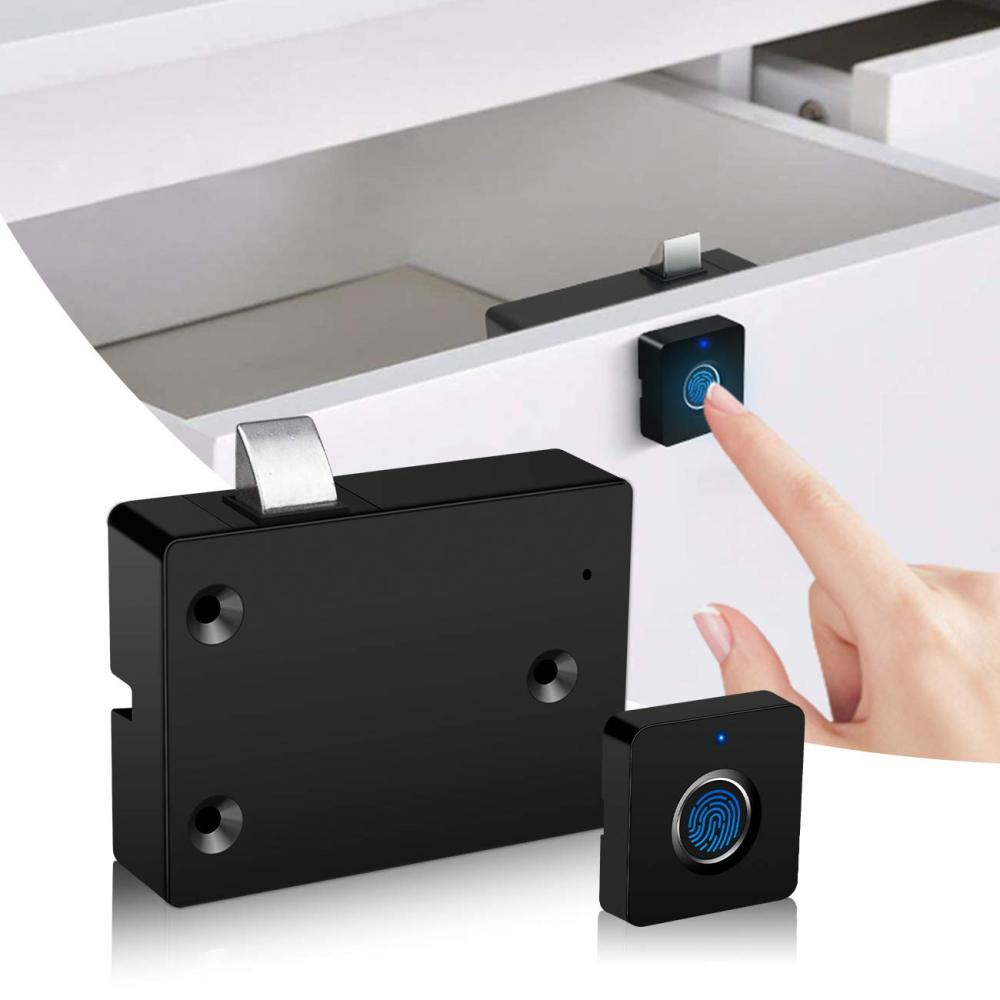

Fingerprint Lock Electronic Cabinet Door Locks, Smart Biometric Hidden File Cabinet Lock Kit Replacement, USB Rechargeable Keyless Furniture Drawer Lock for Cabinets, Suitable for Home & Office

Biometric Fingerprint Lock- Keyless/Smart /Safe

Say no to:

• Key
• Magnetic card
• Digital password.
• APP
• PC

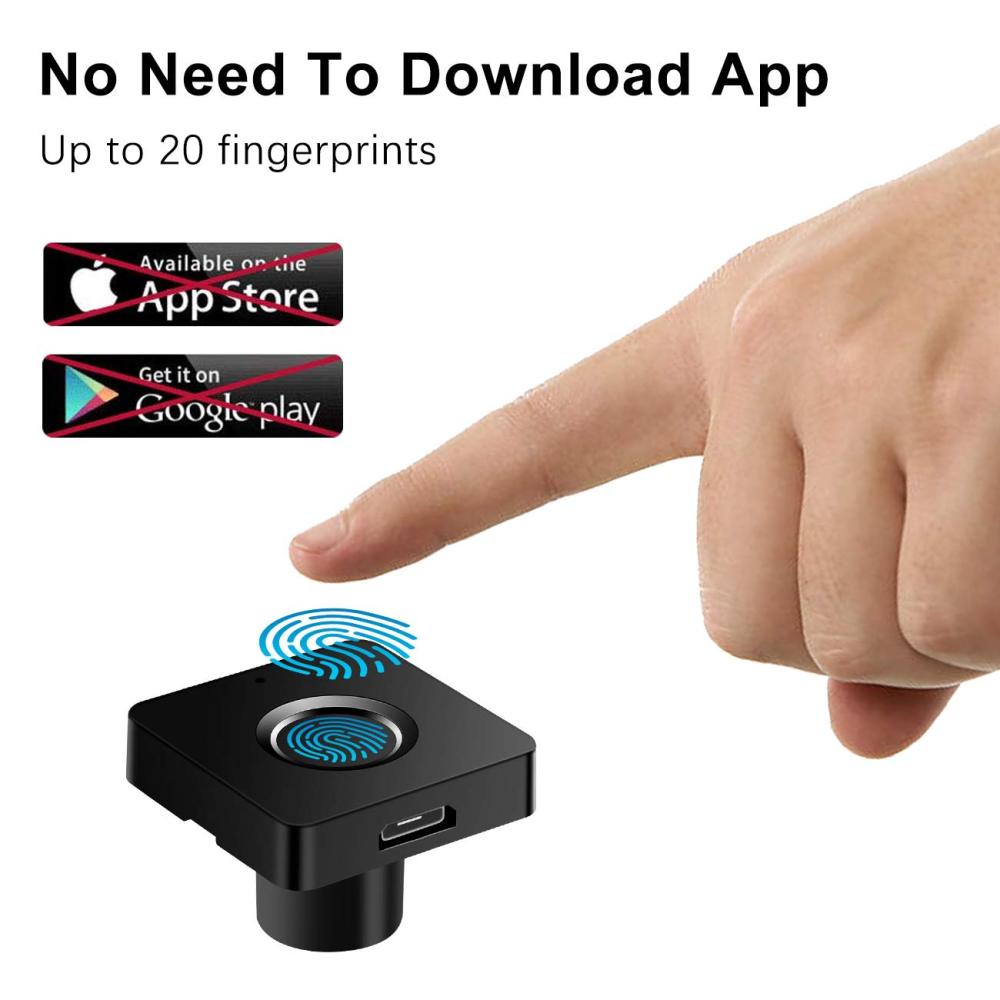

20 Fingerprint can be added

Biometric cabinet door lock supports the simultaneous management of multiple people, which can greatly improve work efficiency.

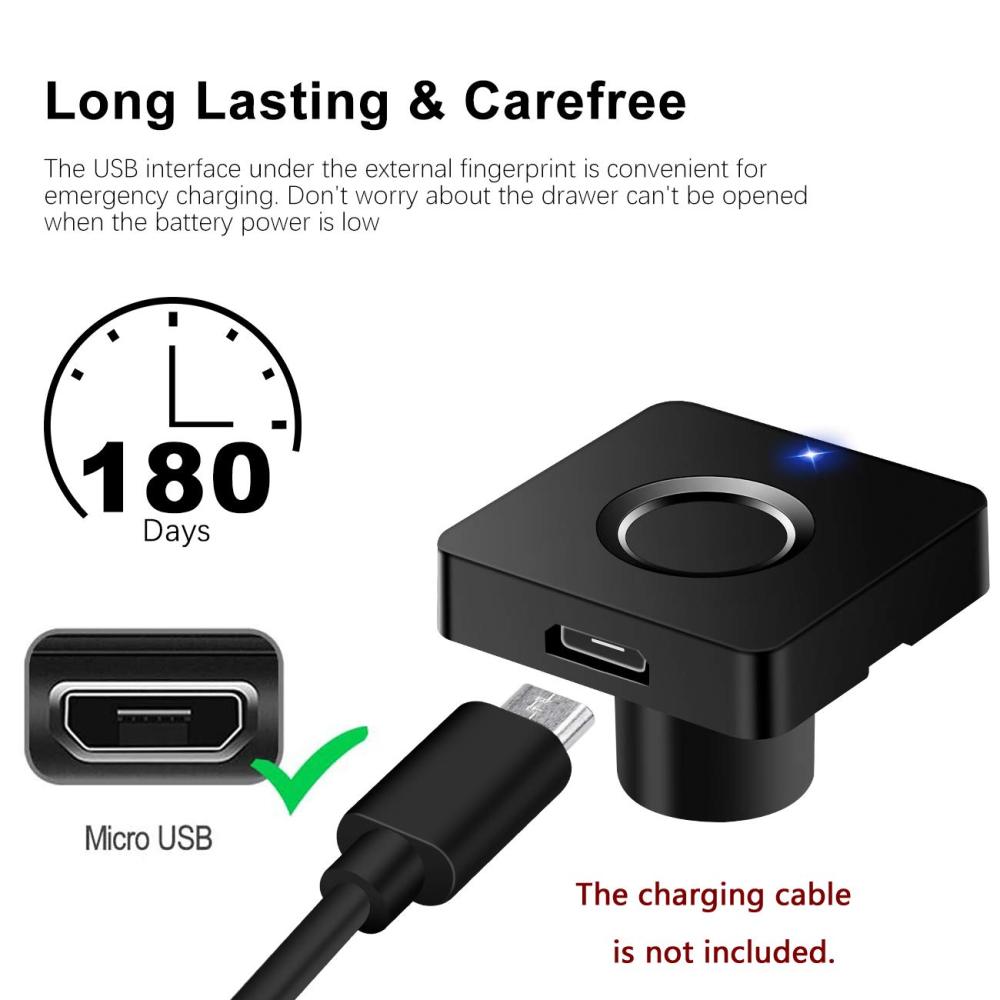

Lower Power & Rechargeable Design

A full charge can last about 180 days. The fingerprint panel is designed with a USB emergency charging port. Say no to the situation that the battery of cabinet locks is too low to unlock.

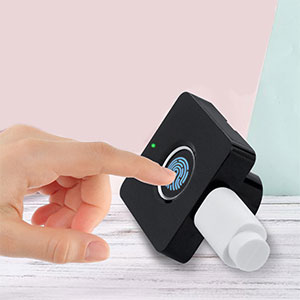

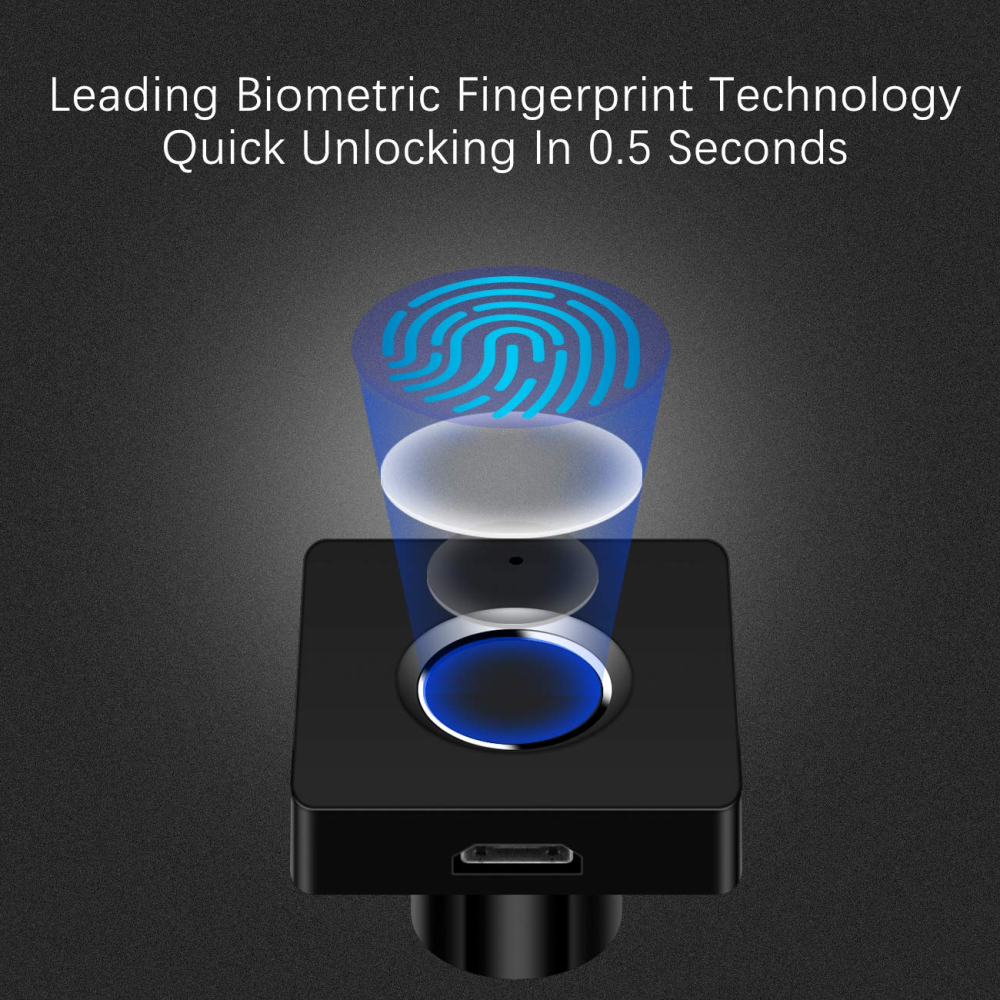

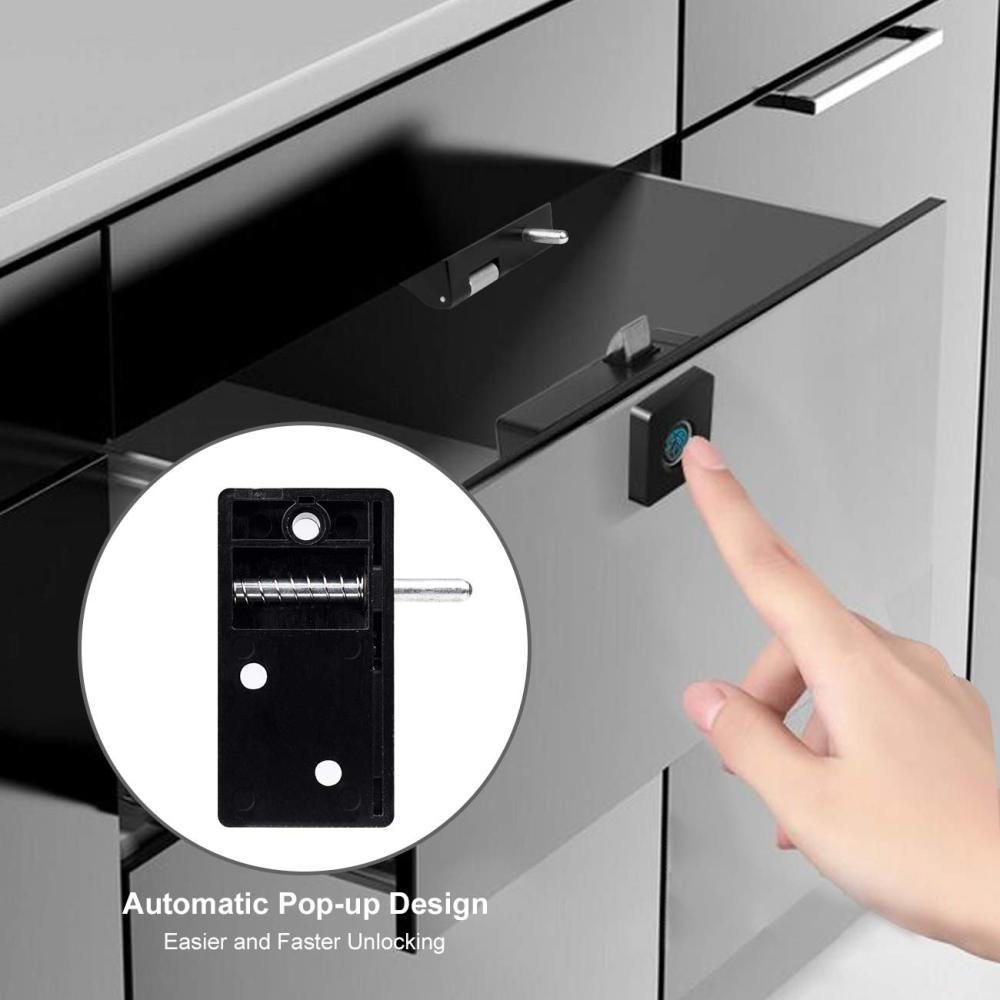

0.5 Second Quick Unlock & Automatic Pop-up

Adopting professional biometric technology, smart drawer lock delivers a fast and accurately 360° omni-directional recognition, which creats a 0.5 second quick unlocking.

Add (administrator) fingerprint for the first time:

(Note: The first three fingerprints are administrator fingerprints. If no fingerprints are entered, anyone can unlock the lock.)

1. Press and hold for 5 seconds untilthe blue light flashes, then remove.
2. The blue light is always on, start fingerprint entry.
3. The same finger was collected more than 5 times, and the fingerprint was collected successfully.
4. The green light is on, the entry is successful; the red light is on, the entry fails.

Add ordinary users fingerprints:

1. Press the fingerprint lock panel and hold for 5 seconds until the blue light flashes, then remove.
2. Start the fingerprint verification of first administrator.
3. After the administrator's fingerprint is typed in, the blue light flashes and the type-in status of new fingerprint starts.
4. The same finger was collected more than 5 times, and the fingerprint was collected successfully.
5. The green light is on, the entry is successful; the red light is on, the entry fails.

Delete Fingerprint:

Note: Deletion of the fingerprint means that all fingerprints can be deleted, instead of deleting certain fingerprint record separately.

1. Press the fingerprint lock panel and hold for 10 seconds until the red light flashes (flashing blue light first during the period) , loosen fingers.
2. Enter the administrator's fingerprint verification.
3. After the green light is on for 1 second, the fingerprint is deleted successfully.

Keep the Decoder Carefully !!!

The decoder can prevent sudden fingerprint recognition failure. You can use the decoder to clear the fingerprints to unlock.

How to Use：

1. Insert the decoder into USB charging port.
2. Press the panel until three-color breathing light flashes continuously, then remove. (All fingerprints are successfully deleted, and the fingerprint lock returns to initial state.)
3. Enter any fingerprint to unlock.
4. After successfully unlocking, please re-enter the administrator and common user fingerprints.

Precautions:

About low battery warning

When the battery is too low, the red indicator light of the electronic drawer lock will flash 3 times quickly after unlocking.

About Anyone Can Unlock the Lock

This may due to the failure of fingerprints recording. In this case, the decoder can be used to restore the initial state, and then reset the electronic cabinet lock. Especially the administrator’s fingerprint entry must be successful.

About Installation Steps

Each of our products is packed with an English version of the manual, which explains in detail the use and installation matters. Please read it carefully before installation.

Packing List:

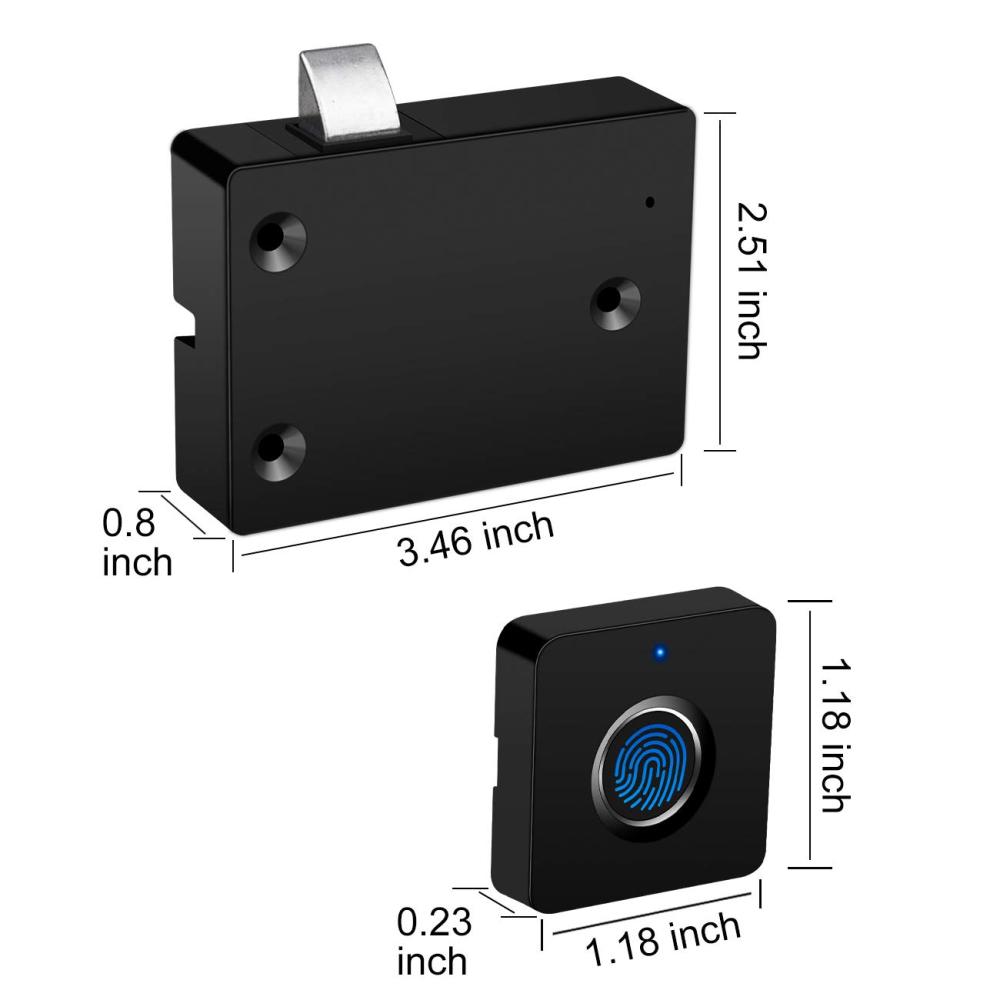

• Fingerprint Panel
• Lock Body
• Lock Catch
• Decoder
• Screw Accessory Package
