IP68 Waterproof Outdoor Door Access Control System Kit RFID Access Control Keypad Touch Panel + 180KG/350lbs Electric Magnetic Lock + Power Supply +10pcs Keyfobs

Product Specifications

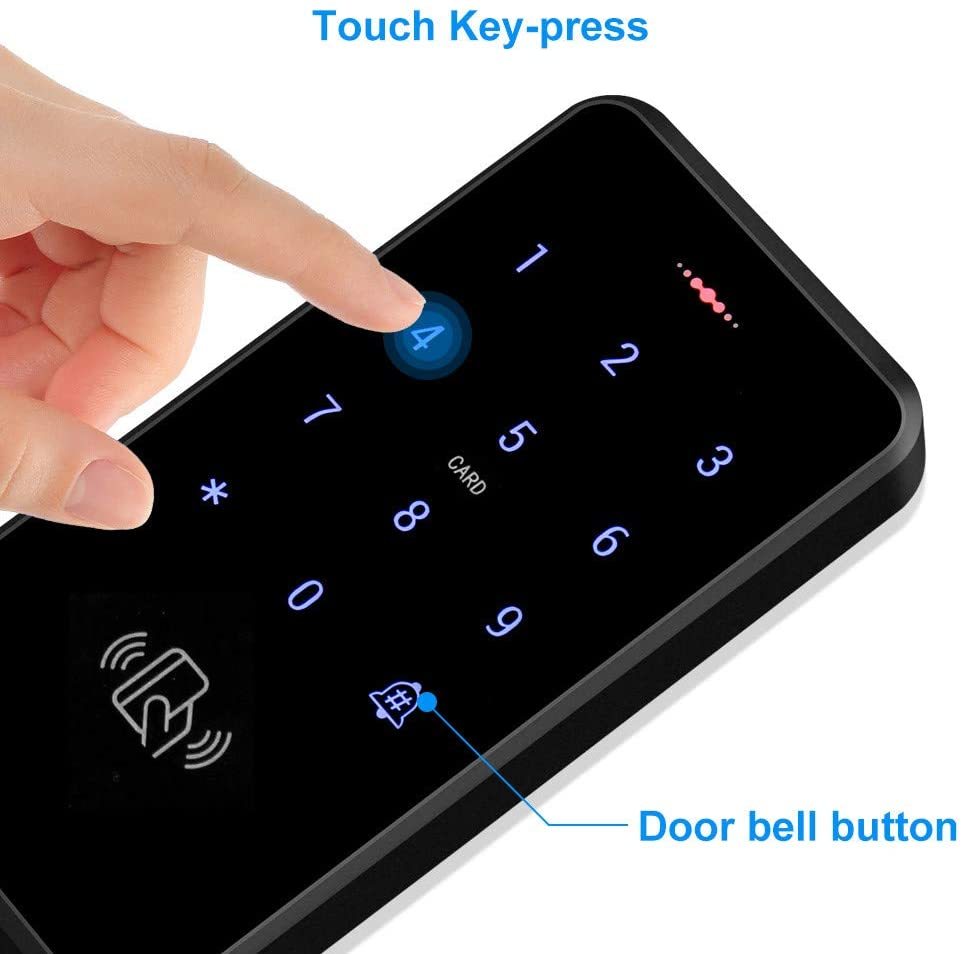

Access Control Keypad
User capacity: 3000
Material: ABS high quality material
Panel: touch screen panel

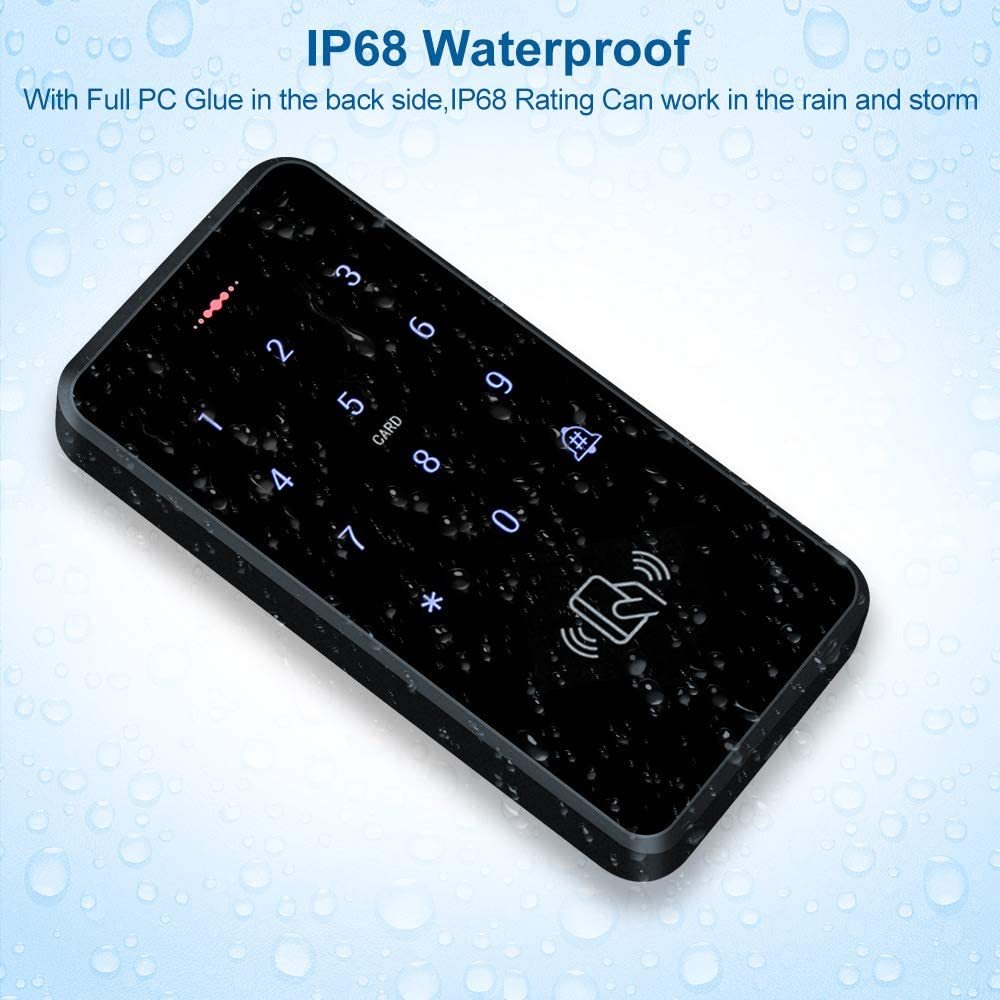

Waterproof level: IP68 waterproof, can be installed outdoor
Working frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%

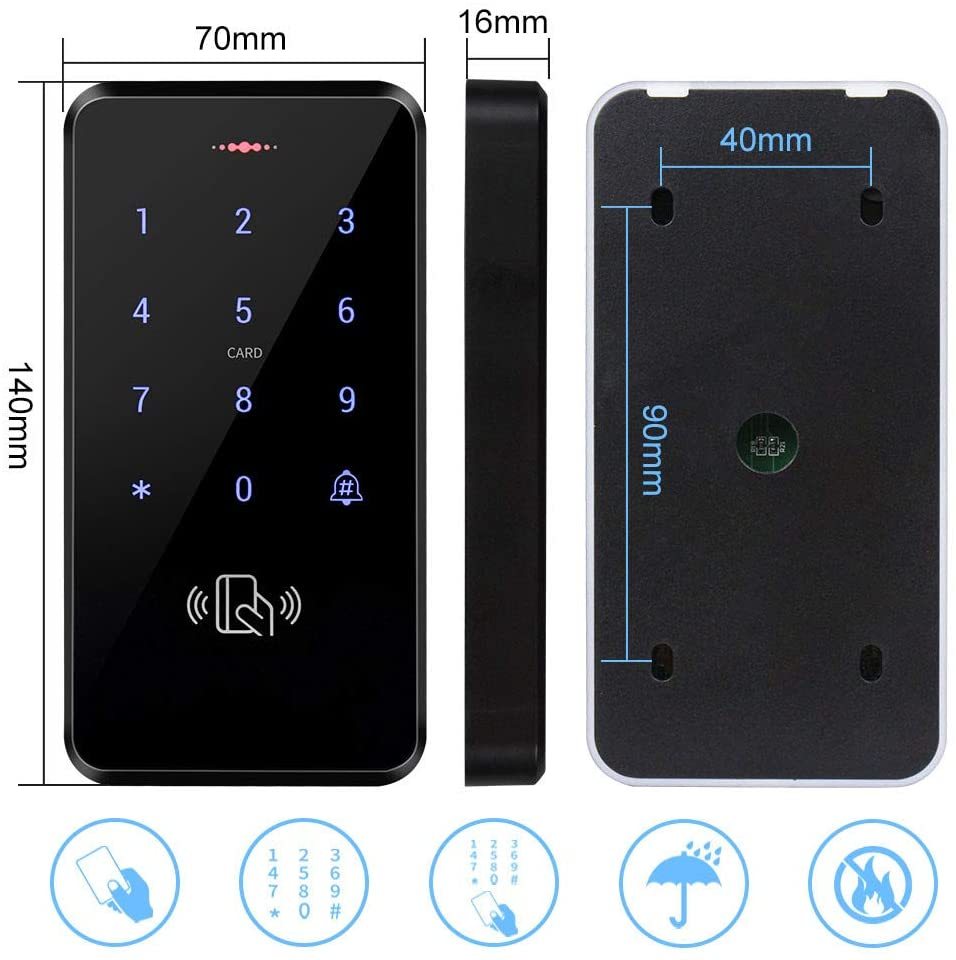

Product size: 140*70*16mm

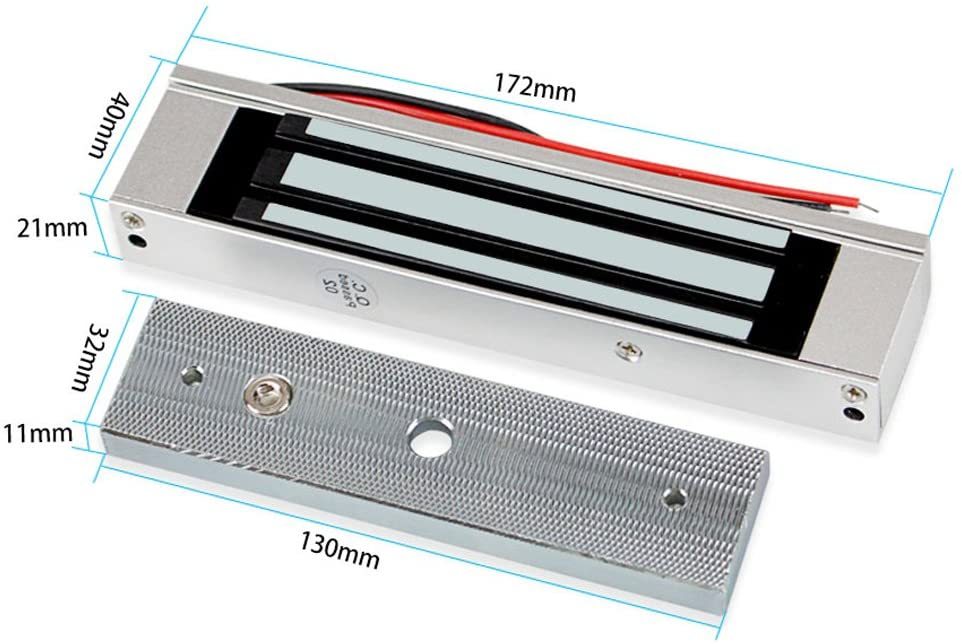

180KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Suitable for door: metal, wooden, glass door
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: locked when power on, unlocked when power off
Waterproof: Yes. Can be install outside

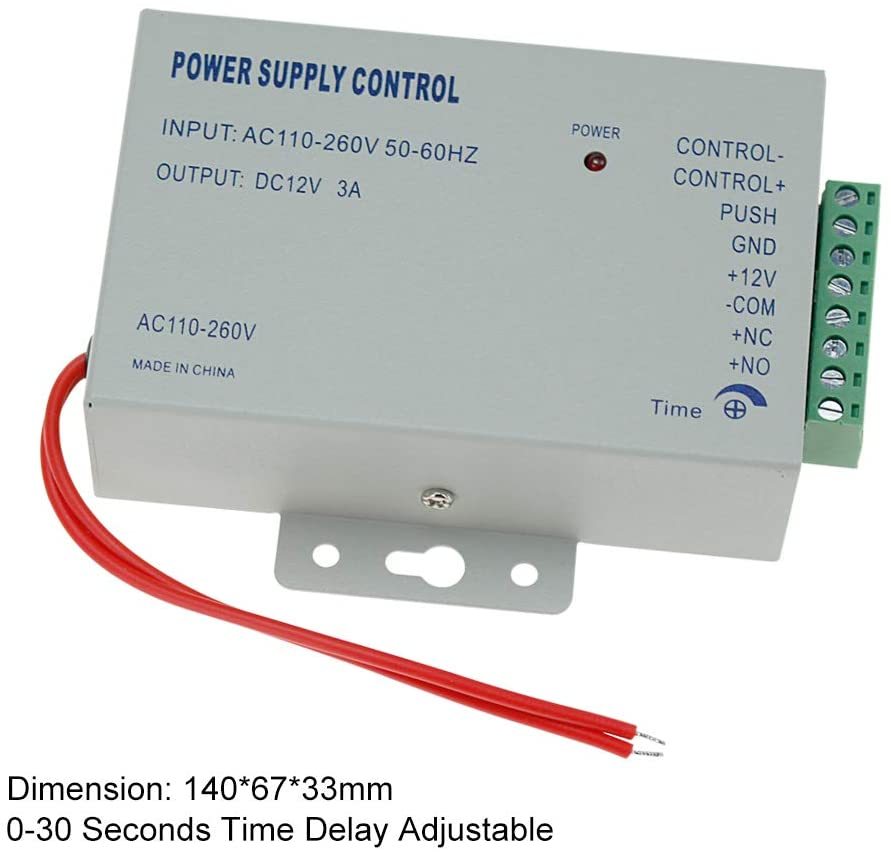

Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )

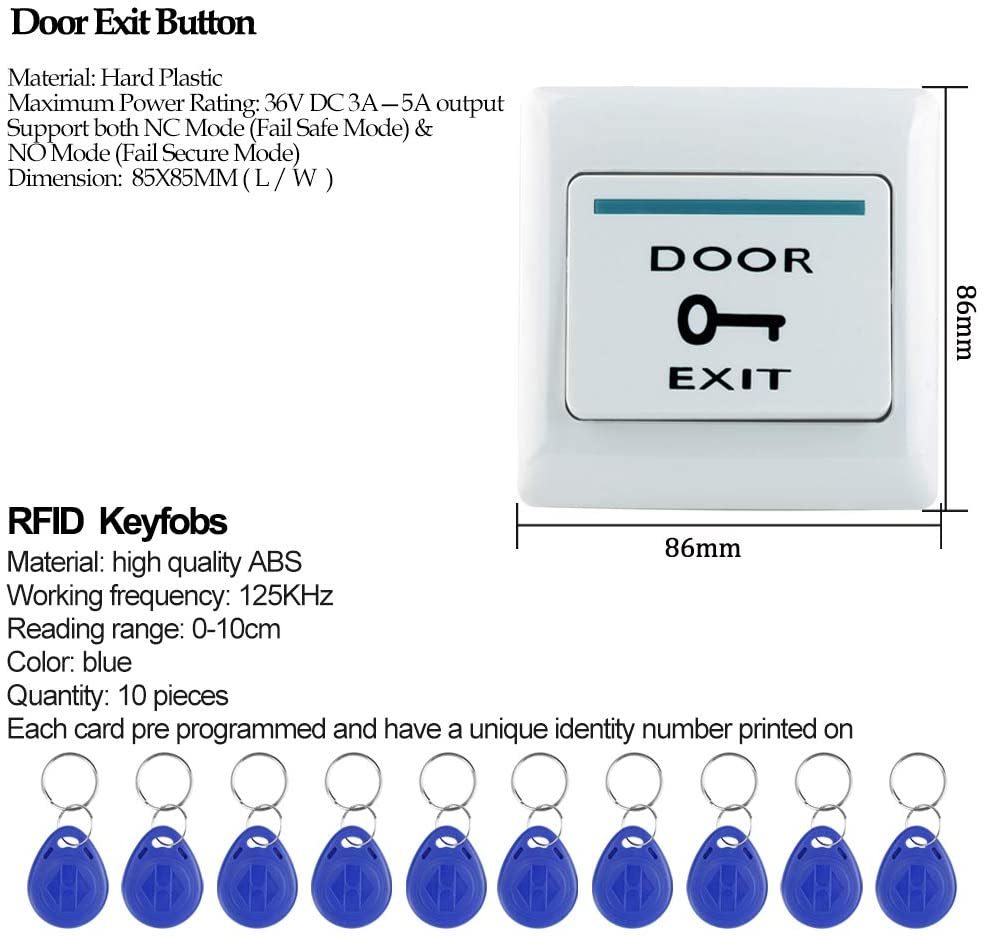

Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM

10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

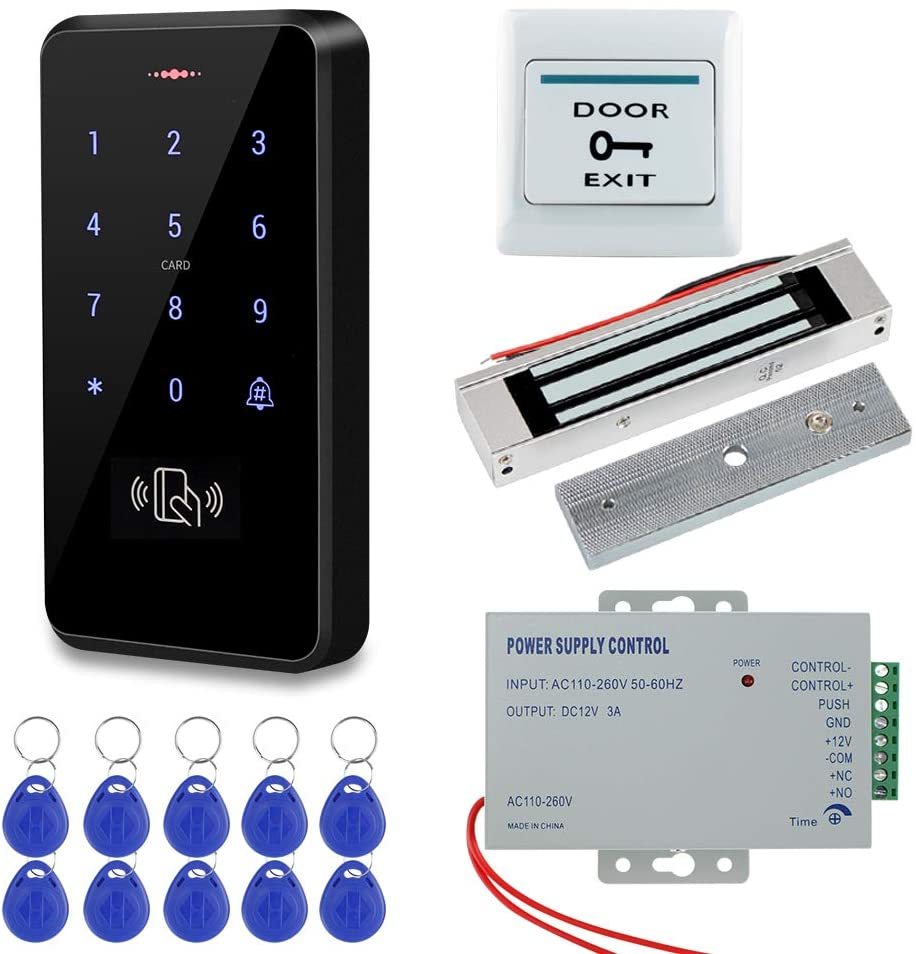

Package Including

1x RFID access control keypad
1x 180KG Electric magnetic lock
1x Power supply
1x Exit button

10x RFID blue keyfobs
